Flexibility
Various sizes available, so it adapts easily to the size of the air handling unit
Maximum efficiency
- Hydraulic unit in AHU
- No loss of load
- No condensate in the steam distribution systems
- Helps heat the room
- No loss of load
- No condensate in the steam distribution systems
- Helps heat the room
Germ-free steam
Self-extinguishing engineering plastic which prevents bacterial proliferation

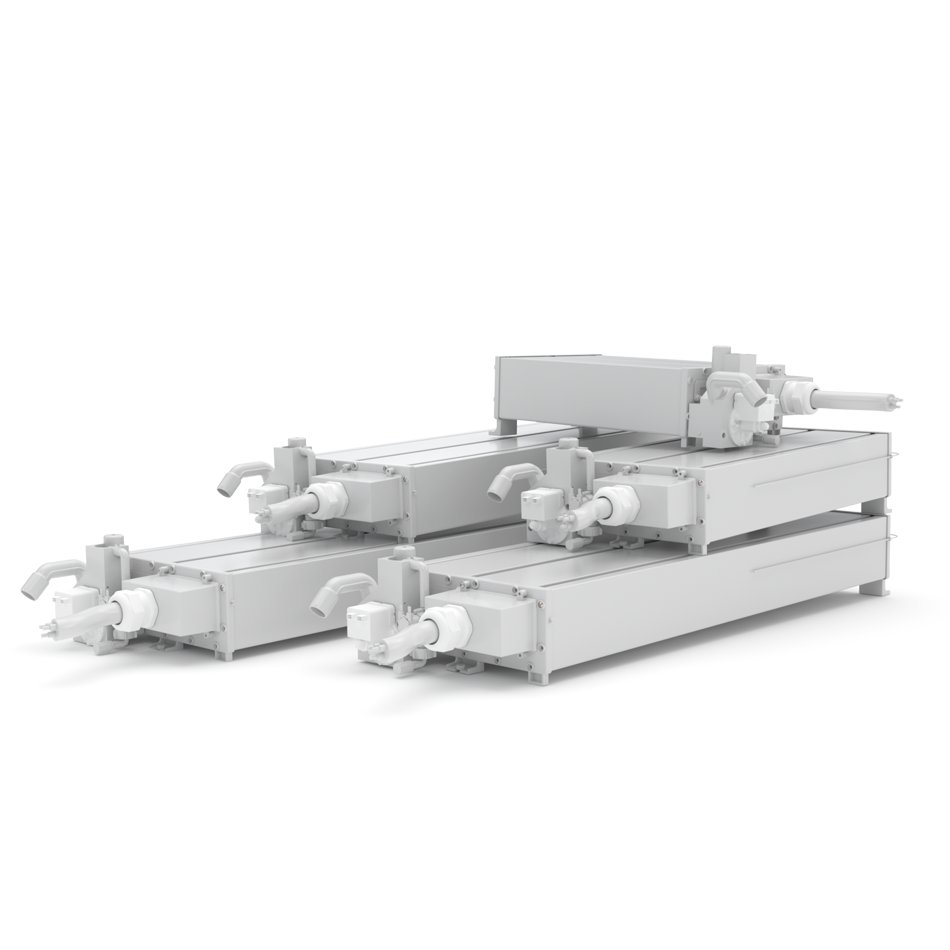

Installed directly in an AHU
No need for an electronics compartment or distribution piping
OEMs series
- Modular solution for AHU manufacturers consisting of 1 or 2 boilers which can be combined to reach the desired production capacity
- Independent configuration of power supply voltage
- Freedom for the OEM to define the electrical layout
Electronic controller and current transformer
EHHKT and 0103349007
- Controller kit with an open frame board which can be housed in the AHU electrical panel
- Suitable for all boiler sizes
- To be ordered separately
EHHKX and 0103349007
Expansion board and current transformer to control an additional hydraulic unit
Ideal in the following applications
| EHKD | 010T4XS | 010T5XS | 020T4S | 020T5S | 020T4XS | 020T5XS | 030T4M | 030T5M | 030T4S | 030T5S | 040T4L | 040T5L | 040T4S | 040T5S | 060T4XL | 060T5XL | 060T4M | 060T5M | 080T4L | 080T5L | 100T4XL | 100T5XL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STEAM PRODUCTION | ||||||||||||||||||||||
| Production capacity [kg/h] | 10 | 20 | 30 | 40 | 60 | 80 | 100 | |||||||||||||||
| ELECTRICAL PROPERTIES | ||||||||||||||||||||||
| Power consumption [kW] | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | |||||||||||||||
| Power supply [Vac, Hz] | 400, 50/60 | 460, 50/60 | 400, 50/60 | 460, 50/60 | 400, 50/60 | 460, 50/60 | 400, 50/60 | 460, 50/60 | 400, 50/60 | 460, 50/60 | 400, 50/60 | 460, 50/60 | 400, 50/60 | 460, 50/60 | 400, 50/60 | 460, 50/60 | 400, 50/60 | 460, 50/60 | 400, 50/60 | 460, 50/60 | 400, 50/60 | 460, 50/60 |
| Phases [n] | 3 | |||||||||||||||||||||
| Current per phase [A] | 10.8 | 9.4 | 21.7 | 18.8 | 22 | 18.8 | 32.5 | 28.2 | 32 | 28.2 | 43.3 | 37.7 | 40 | 37.7 | 65 | 56.5 | 65 | 56.5 | 87 | 75.3 | 108.2 | 94.1 |
| WATER PROPERTIES | ||||||||||||||||||||||
| Inlet water quality | Complies with microbiological standards for drinking water established by regulations in force where installed. Partially demineralised water may be used |
|||||||||||||||||||||
| Inlet water conductivity [μS*cm] | 75…1250 | |||||||||||||||||||||
| Inlet water hardness [°f] | 5...50 | |||||||||||||||||||||
| Inlet water pressure [MPa/bar] | 0,02...1/0,2...10 | |||||||||||||||||||||
| Minimum instantaneous flow rate of inlet water [l/min] | 3.5 | 5.5 | 3.5 | 5.5 | 3.5 | 5.5 | ||||||||||||||||
| Inlet water connection | M 3/4"GAS | |||||||||||||||||||||
| Water drain external diameter [mm] | 40 | |||||||||||||||||||||
| GENERAL CHARACTERISTICS | ||||||||||||||||||||||
| Control unit dimensions [mm] | 350x500x210 | |||||||||||||||||||||
| Hydraulic unit dimensions [mm] | 330x167 | |||||||||||||||||||||
| Depth 4 electrodes [mm] | 635 | 785 | / | 985 | / | 1185 | / | 1385 | / | / | / | |||||||||||
| Depth 7 electrodes [mm] | / | / | 635 | / | 785 | / | 785 | / | 985 | 1185 | 1385 | |||||||||||
| Weight [kg] | 15 | 16.5 | 18.5 | 21.5 | 25 | 24.5 | 27.5 | 30 | ||||||||||||||
| Operating conditions [°C, RH] | 1…40, max. 80% non-condensing | |||||||||||||||||||||
| Storage conditions [°C, RH] | -10…70, max. 95% non-condensing | |||||||||||||||||||||
| Level of protection of control unit | IP65 | |||||||||||||||||||||
| Level of protection of hydraulic unit | IPX0 | |||||||||||||||||||||
| REGULATION | ||||||||||||||||||||||
| Type of controller | Built-in | |||||||||||||||||||||
| Command signal | ON-OFF, proportional 0...10 V, transducer 0...10 V/4...20 mA | |||||||||||||||||||||
| Connectivity | ||||||||||||||||||||||
| RS-485 MODBUS | Built-in | |||||||||||||||||||||
| Condensate collection trays | |
| 0016020018 | stainless steel condensate collection tray 490x690x70 mm |
| 0016020019 | stainless steel condensate collection tray 490x950x70 mm |
| 0016020020 | stainless steel condensate collection tray 490x1.350x70 mm |
| EHVI | drainage tank Zephyr, KT and VEH series humidifier |
| EHKD0K18 | 5 m long power supply cable kit between panel and hydraulic unit for EHKD010-EHKD020-EHKD030-EHKD040-VEH10-VEH20-VEH30-VEH40 |
| EHKD0K19 | 5 m long power supply cable kit between panel and hydraulic unit for EHKD060-EHKD080-EHKD100-VEH60-VEH80-VEH100 |
| EHKD0K20 | hydraulic unit accessibility kit for VEH series humidifiers from air treatment units |
| EHKD0K22 | wall-mounted hydraulic connection kit for VEH series humidifiers |
| EHKD0K23 | VEH series humidifier water loading/unloading external kit |
| Controls | |
| EV3411M7 | single output electronic controller, power supply 230 VAC, multi-sensor analog input |
| EVHTP520 | humidity and temperature probe, proprietary signal |
| EVHP523 | humidity transducer, power supply 8... 28 VDC, 1 x 4-20 mA provided signal |
| EVHTP523 | humidity and temperature transducer, power supply 8... 28 VDC, 2 x 4-20 mA provided signal |
| EVTPNW30F200 | NTC probe, 2 wires thermoplastic cable 3 m lenght, 5x20 mm overmoulded bulb, IP68 protection |
| Various | |
| 0031000048 | 0.3 m long flexible hose ¾ " GAS female that connects the mains water and solenoid valve to load water |
